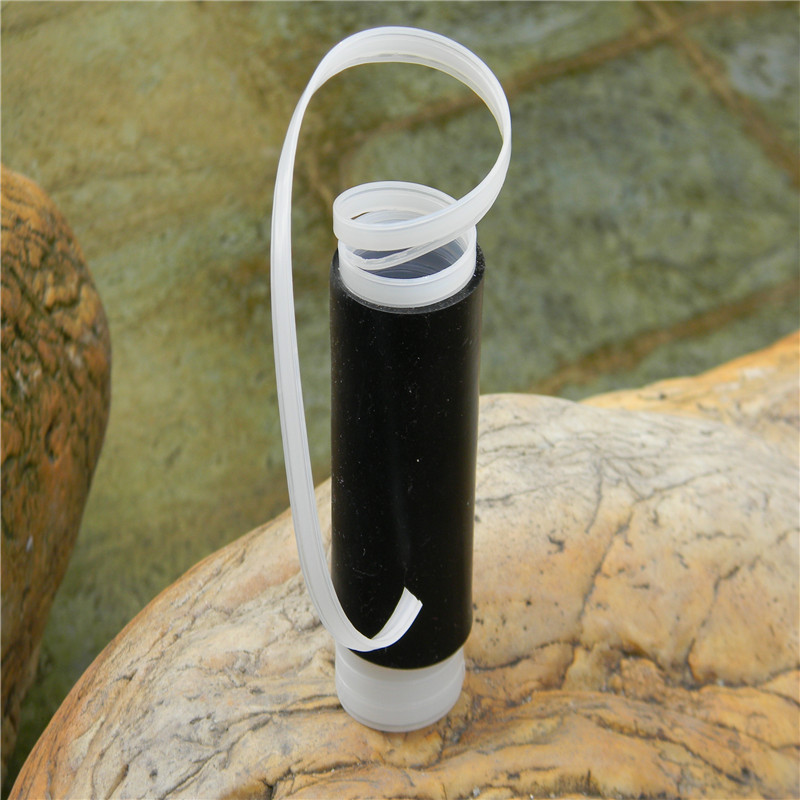

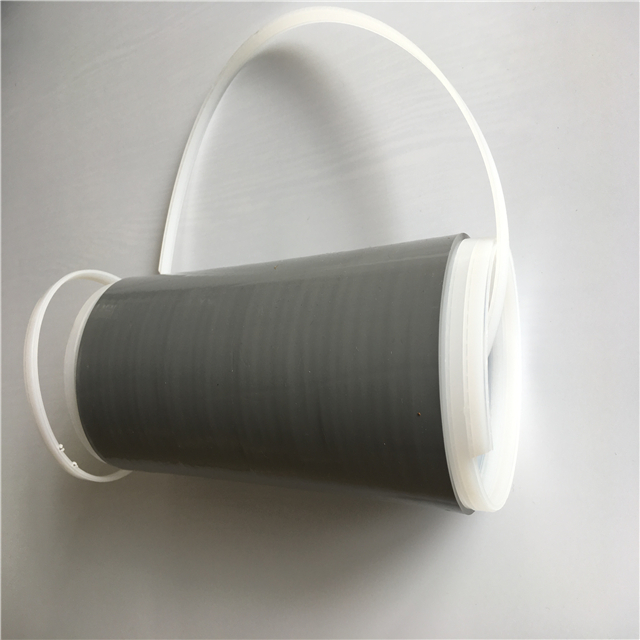

- EPDM Cold shrink tube
- 【Brief 】：
Made of EPDM rubber
Easy and fast installation
Can meet a variety of configuration requirements
Provide sealing protection over multi-core cable ends
Used to seal cable during installation or storage, protecting cable ends against
- 【Series】：EPDM Cold Shrink Tube
- Product description
Technical Data
Property
Test Method
Standard Value
300% Modulus
ASTM D-412-75
4.2MPa
Ultimate Tensile
ASTM D-412-75
Ultimate Elongation
ASTM D-412-75
600%
Tear strength
ASTM D-624C-73
28.3KN/m
Fungus Resistance
ASTM G-21
28 days exposure No Growth
Moisture Absorption 7 days@ 90℃in H2O
3.0% wt. Gain
KeHong Enterprises Co.,Ltd.
No,7118,Floor 7, Sha Feng Business Building,
Jin sha zhou, Baiyun District,Guangzhou,China.
www.gzhelectric.com
www.heatshrinkstar.com
www.khenterprise.en.alibaba.com
E -mail：lily@gzhelectric.com
Tel:+86-20-82586869, Mobile: +8615918777767
Wechat:008615918777767
Skype:gonggulily
Simple and fast installation, no tools required.
Size ranges from 20mm – 150mm.
Sealing tight, high rebound even after prolonged years of aging and exposure.
Water-resistant.
No mastic or tape required. No torches or heat required.
Resists fungus. Resists acids and alkalis. Resists ozone.
Easily removed.
No training required for installation.
Selection Table
|
Cold Shrink Tube of General EPDM |
|||
|
Size |
Application Range (mm/inch) |
Length after Relaxed (mm/inch) |
Color |
|
Φ20 |
8～15/0.30～0.59 |
152/6 |
Black |
|
Φ25 |
10～20/0.39～0.79 |
203～280/8～11 |
Black |
|
Φ35 |
14～30/0.55～1.18 |
229～280/9～11 |
Black |
|
Φ40 |
17.5～33/0.69～1.30 |
152～457/6～18 |
Black |
|
Φ53 |
25～46/0.98～1.81 |
152～457/6～18 |
Black |
|
Φ70 |
32～63/1.26～2.48 |
152～457/6～18 |
Black |
|
Ф104 |
43～94/1.69～3.70 |
229/9 |
Black |
|
Ф125 |
46～114/1.81～4.49 |
229/9 |
Black |
|
Ф150 |
55-135/2.17～5.31 |
457/18 |
Black |
|
Cold Shrink Tube of High Shrinkage Ratio EPDM |
|||
|
Size |
Application Range (mm/inch) |
Length after Relaxed (mm/inch) |
Color |
|
Φ35 |
12.5～30/0.49～1.18 |
229～279/9～11 |
Black |
|
Φ40 |
14～33/0.55～1.30 |
152～406/6～16 |
Black |
|
Φ53 |
19～46/0.75～1.81 |
152～457/6～18 |
Black |
|
Ф60 |
20.5～51/0.81～2.01 |
254/10 |
Black |
|
Ф70 |
25～63/0.98～2.48 |
152～457/6～18 |
Black |
|
Ф80 |
27.4～70/1.08～2.75 |
325/13 |
Black |

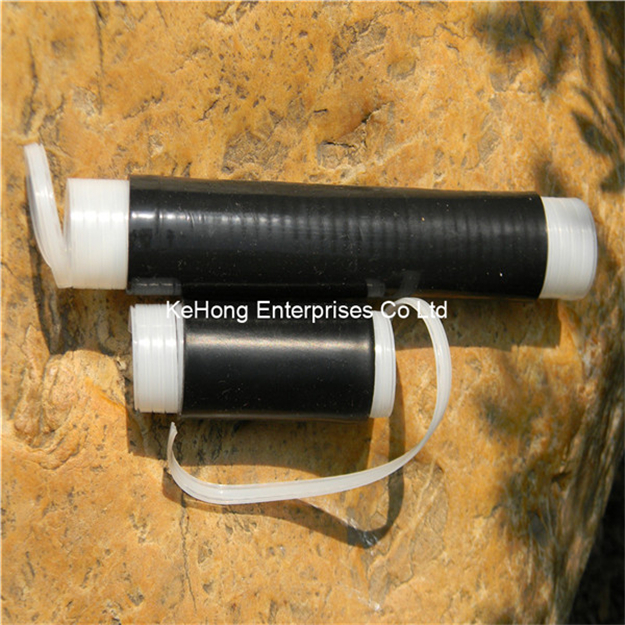

EPDM Material Cold shrink tube
