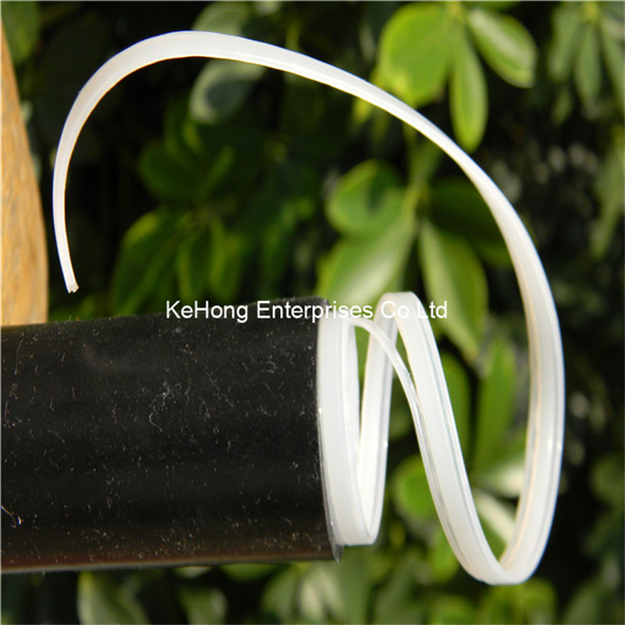

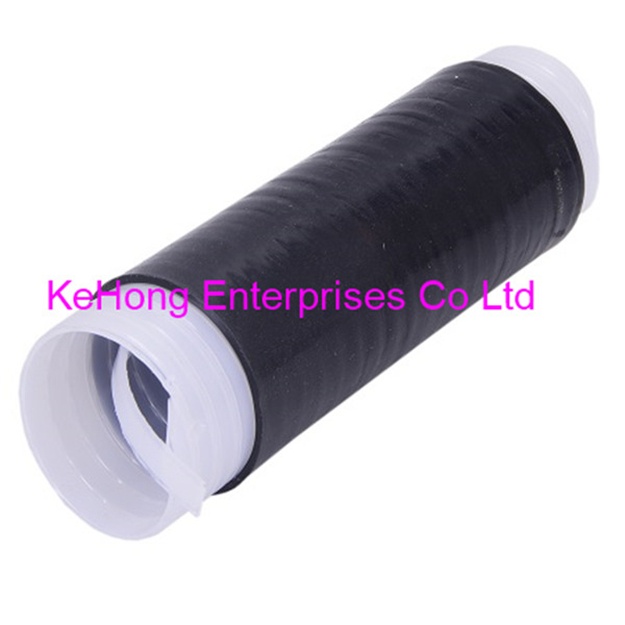

- EPDM Cold shrink tubing for Coaxial cable
- 【Brief 】：
Ethylene-Propylene-Diene Monomer (EPDM) is a terpolymer of ethylene, propylene and non-conjugated dienes. EPDM rubber has excellent mechanical properties, pricking resistance and high tear resistance, weather resistance, ultraviolet radiation resistance, ozone aging resistance, acid and alkali resistance, salt spray corrosion resistance, high and low temperature resistance up to - 55 ~ + 150, is an ideal sealing material for communication cables, coaxial cables, medium and low voltage power cables.
Simple and fast installation, no tools required.
- 【Series】：Cold Shrink Tube
- Product description
Size ranges from 20mm – 150mm.
Sealing tight, high rebound even after prolonged years of aging and exposure.
No mastic or tape required. No torches or heat required.
Resists fungus. Resists acids and alkalis.
Resists ozone. Easily removed. Water-resistant.
No training required for installation.
Selection Table
Cold Shrink Tube of General EPDM
Size
Application Range (mm/inch)
Length after Relaxed (mm/inch)
Color
Φ20
8～15/0.30～0.59
152/6
Black
Φ25
10～20/0.39～0.79
203～280/8～11
Black
Φ35
14～30/0.55～1.18
229～280/9～11
Black
Φ40
17.5～33/0.69～1.30
152～457/6～18
Black
Φ53
25～46/0.98～1.81
152～457/6～18
Black
Φ70
32～63/1.26～2.48
152～457/6～18
Black
Ф104
43～94/1.69～3.70
229/9
Black
Ф125
46～114/1.81～4.49
229/9
Black
Ф150
55-135/2.17～5.31
457/18
Black
Cold Shrink Tube of High Shrinkage Ratio EPDM
Size
Application Range (mm/inch)
Length after Relaxed (mm/inch)
Color
Φ35
12.5～30/0.49～1.18
229～279/9～11
Black
Φ40
14～33/0.55～1.30
152～406/6～16
Black
Φ53
19～46/0.75～1.81
152～457/6～18
Black
Ф60
20.5～51/0.81～2.01
254/10
Black
Ф70
25～63/0.98～2.48
152～457/6～18
Black
Ф80
27.4～70/1.08～2.75
325/13
Black
