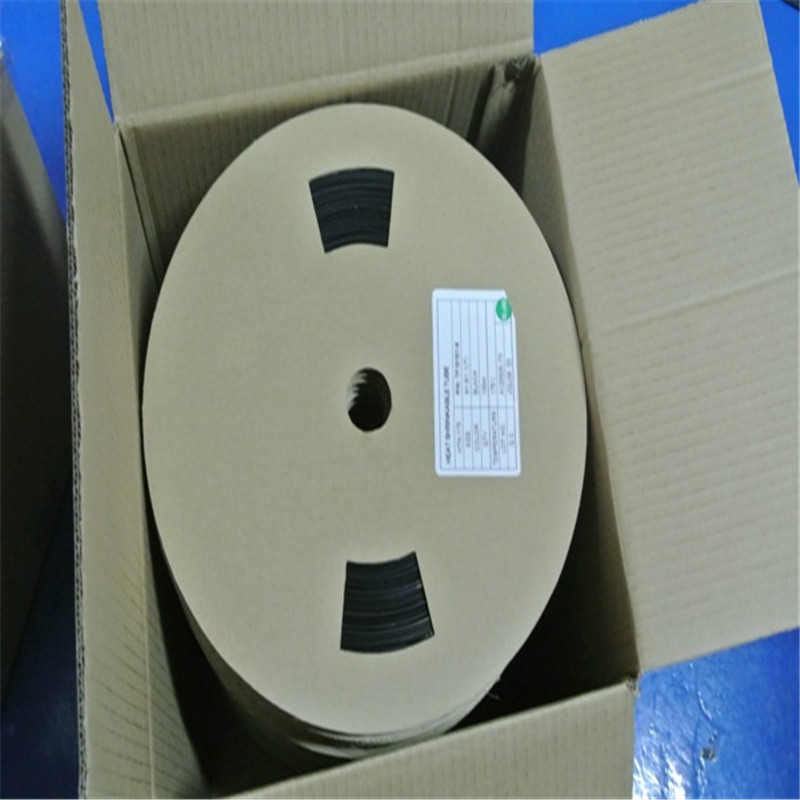

- DR-150 Diesel-resistant elastomer tubing
- 【Brief 】：
elastomer Heat shrink tubing
Resistance to aviation, diesel fuels, hydraulic fluids, and lubricating oils, DR-150 is ideal for applications require resistance to fuels, fluids and solvents. It is particularly suitable for protecting and bundling of high-performance cables and wiring harnesses.
- 【Series】：PTFE FEP Kynar Viton
- Product description
DR-150 Diesel-resistant elastomer tubing
1) Features/Benefits
Shrink ratio: 2:1
Outstanding fluid and heat resistance.
Abrasion resistance, excellent mechanical properties.
Flexible, and self extinguish
Conform to European RoHS environmental directive.
2) Operating Temperature Range
Operating temperature range: -75℃~150℃
Minimum full recovery temperature: 175℃
3) Specifications/Standards
AMS-DTL-23053/16
4) Specification values
Property
Requirement
Test method
Typical value
Physical：
Tensile strength
11.7MPa min.
ASTM D 638
≥14MPa
Elongation
250% min.
ASTM D 638
≥350%
Heat shock 250℃, 4hrs
No cracking, dripping or flowing
ASTM D 2671
Pass
Low temperature flexibility -75℃, 4hrs
No cracking
ASTM D 2671
Pass
Aging 150℃, 168hrs
Tensile strength after aging
10.3MPa min.
ASTM D 638
≥12MPa
Elongation after aging
200% min.
ASTM D 638
≥300%
Electrical：
Dielectric voltage withstand
2500V,60sec,no breakdown
ASTM D 2671
Pass
Dielectric strength
11.9KV/mm min.
ASTM D 2671
≥11.9KV/mm
Volume resistivity
109Ω·cm min.
ASTM D 876
≥109Ω·.cm
Chemical：
Corrosion
No corrosion
ASTM D 2671
Pass
Flammability
Self extinguishing within 1 minute
ASTM D 2671
Pass
Fluid resistance：
23℃，24hrs (aviation and diesel fuels, hydraulic fluids, lubricating oils, etc.)
Tensile strength
10.4MPa min.
ASTM D 2671
≥12MPa
Elongation
200% min.
ASTM D 2671
≥300%
Dielectric strength
7.9KV/mm min.
ASTM D 2671
≥9.0KV/mm
6) Product sizes
|
Size |
Inside diameter |
Wall thickness |
Standard length (m/spool) |
|
|
As supplied（min.） |
After recovery（max.） |
After recovery |
||
|
1/8 |
3.2（0.125） |
1.6（0.062） |
0.76±0.15 （0.030±0.006） |
100 |
|
3/16 |
4.8（0.187） |
2.4（0.093） |
0.84±0.15（0.033±0.006） |
100 |
|
1/4 |
6.4（0.250） |
3.2（0.125） |
0.89±0.15（0.035±0.006） |
100 |
|
3/8 |
9.5（0.375） |
4.8（0.187） |
1.02±0.20（0.040±0.008） |
50 |
|
1/2 |
12.7（0.500） |
6.4（0.250） |
1.22±0.20（0.048±0.008） |
30 |
|
3/4 |
19.1（0.750） |
9.5（0.375） |
1.45±0.28（0.057±0.011） |
30 |
|
1 |
25.4（1.000） |
12.7（0.500） |
1.78±0.28（0.070±0.011） |
30 |
|
1 1/2 |
38.1（1.500） |
19.0（0.750） |
2.41±0.41（0.095±0.016） |
15 |
|
2 |
50.8（2.000） |
25.4（1.000） |
2.79±0.41（0.110±0.016） |
22 |
